SW-HZ8D4 Sundown Audio Horizon HZ Series 8" inch Subwoofer Sub 500W RMS 4 Ohm DVC
by Sundown
Save 17%
Original price
$287.99
Original price
$287.99
-
Original price
$287.99
Original price
$287.99
Current price
$239.99
$239.99
-
$239.99
Current price
$239.99
🚚 Order within the next 2 hours, 15 minutes for delivery by 11 Oct, 2025.
Availability:
in stock

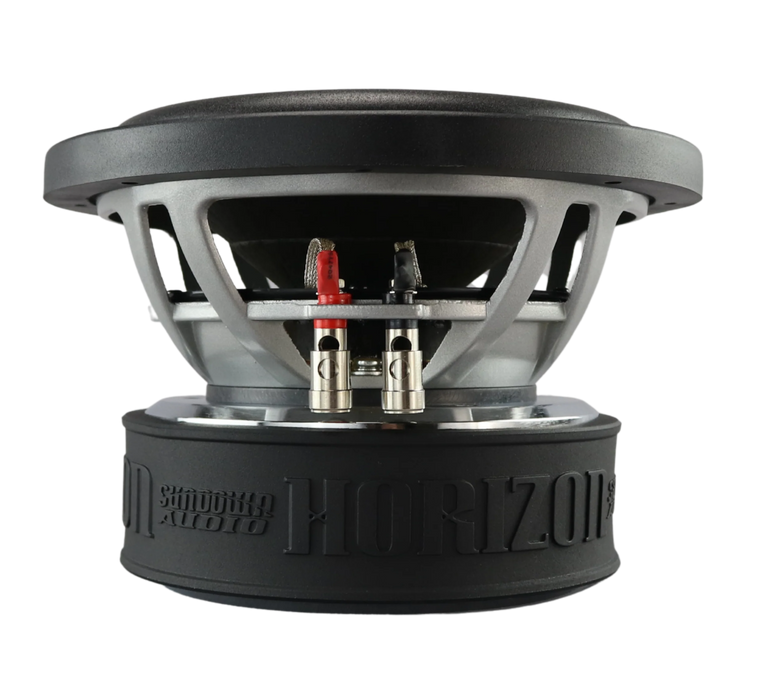

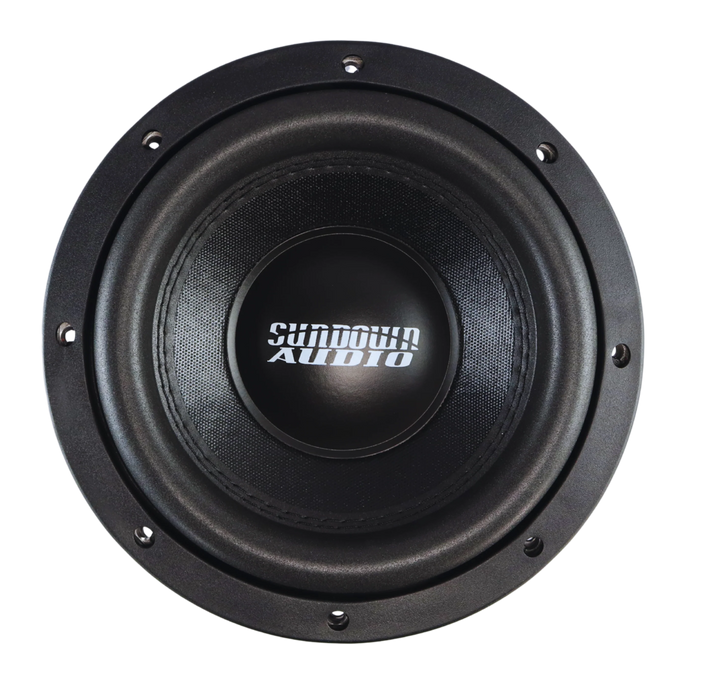

HORIZON HZ 8" SUBWOOFER
HZ Series Key Features:
- RMS Power:
- 8" – 500W RMS / 2" Voice Coil
- Voice Coil Options: Dual 4Ω - High temp 4-layer copper voice coil wire
- XMAX: Class-leading 14mm Xmax
- Frame: Heavy-duty cast aluminum basket
- Cooling: Vented motor gap and pole piece for optimized heat dissipation
- Durability: Stitched Mini-XL tinsel leads and bolted spider pack
- Suspension: High-roll surround with progressive spider for smooth, controlled excursion
- Recommended Enclosure: Ported for maximum efficiency and output
Specifications
|
RE (Ohms) |
5.8 |
|
FS (Hz) |
41.323 |
|
VAS (L) |
7.529 |
|
Qes |
0.549 |
|
Qms |
2.997 |
|
Qts |
0.464 |
|
BL (NA) |
17.618 |
|
Mms (Grams) |
113.099 |
|
Cms (mm/N) |
131.157 |
|
Sens (dB @ 1w/1m) |
81.7 |
|
Xmax |
14mm |
|
T/S SPECS |
HZ 8" |
-
Ported Enclosure
- Size: 0.65 cuft net
- Port Area: 9 sq in
- Port Tuning: 35hz
-
Sealed Enclosure
- Size: 0.3 cuft net
- Displacement: 0.07 cuft.
- Depth: 5.28"
- Outside Diameter: 8.6"
- Cutout: 7.250"
