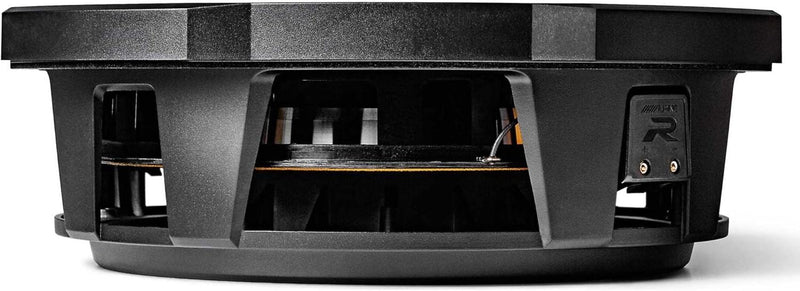

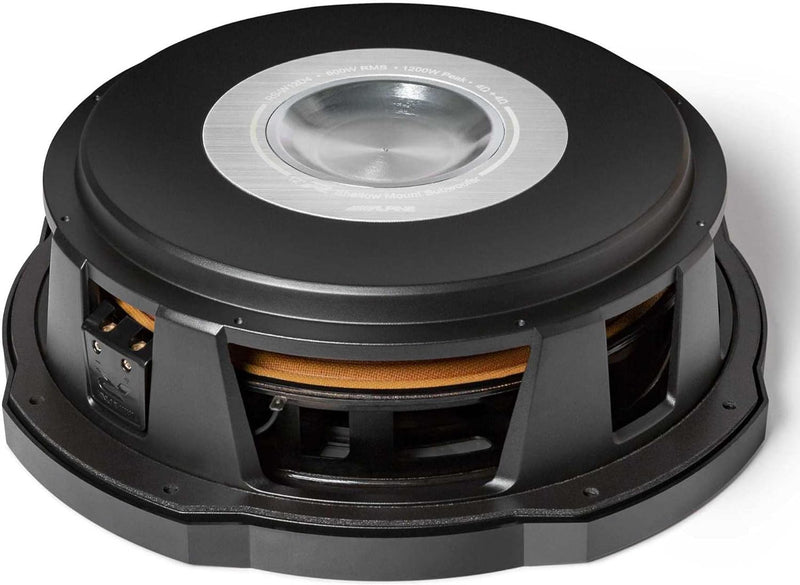

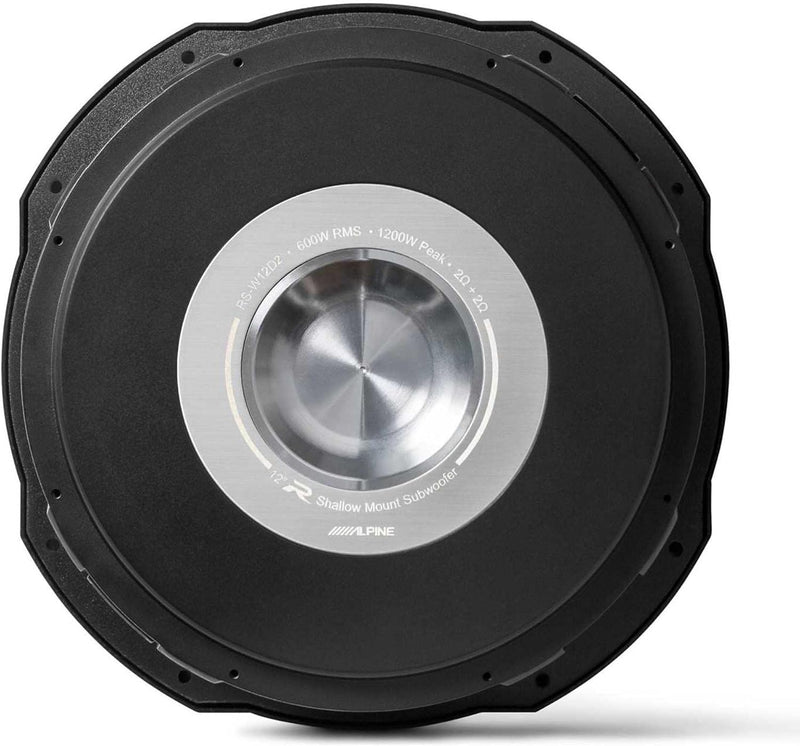

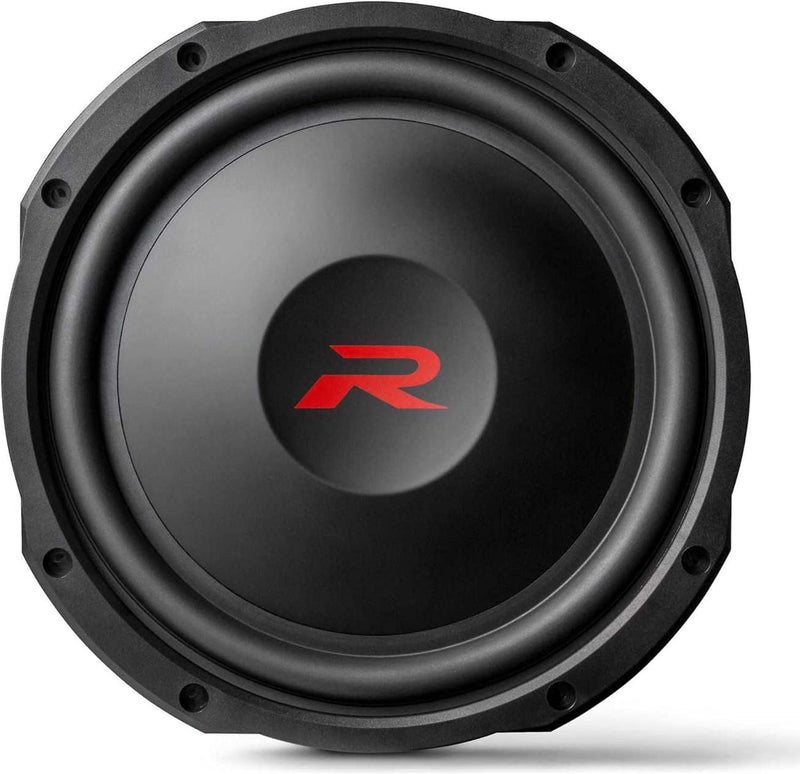

RS-W12D4 Alpine 12" R-Series Shallow Thin Profile Subwoofer Sub 600W RMS 4 Ohm DVC

RS-W12D4 Alpine 12" R-Series Shallow Thin Profile Subwoofer Sub 600W RMS 4 Ohm DVC

by Alpine
Save 7% Save 7%
$700.00
$700.00 - $700.00
$700.00
$649.95
$649.95 - $649.95
$649.95
🚚 Order within the next 2 hours, 15 minutes for delivery by 25 Feb, 2025.
Availability:
in stock

RS-W12D4 12" R-Series Shallow Mount

12-inch R-Series Shallow Subwoofer with Dual 4-Ohm Voice Coils

With an ultra-shallow subwoofer design and powerful sound output, the R-Series Shallow Subwoofers give you the best of both worlds in size and sound.

ULTRA-SHALLOW DESIGN

For those looking to add powerful, hard-hitting bass performance to their vehicle but lack the space to add a subwoofer, Alpine’s R-Series Shallow Subwoofer delivers the same fun and loud sound you’ve come to expect, now in a shallow subwoofer that’s designed to fit in most vehicle applications.

EXTREME OUTPUT

Don’t let the size fool you – the R-Series Shallow Subwoofers feature the same cone movement (20MM of excursion) as the full-size R2-Series Subwoofers for extreme output in a shallow woofer design. At the heart of the R-Series Shallow Subwoofers is an oversized 4-inch voice coil that is controlled by a powerful neodymium magnet for 600W RMS of power handling.

PRECISE BASS CONTROL

Alpine's Gen2 DD-Linear Magnetic Circuit technology, a compact and efficient dual-gap voice coil structure, allows for better control over the motor, resulting in lower distortion and precise bass control.


POWERFUL BASS PROJECTION

A lightweight yet rigid aluminum dust cap allows the R-Series Shallow Subwoofer to transition sound quickly with minimal distortion and project the bass off the surface of the speaker for hard-hitting yet smooth bass performance.

STURDY CONSTRUCTION

The R-Series Shallow Subwoofers are constructed with a die-cast aluminum frame for a rigid and sturdy construction. For extra protection for the shallow subwoofers, an optional Shallow Subwoofer Grille Kit available in a 12" (KTE-RS12G) option (sold separately) provides a steel mesh grille that protects your investment.



Product highlights:

  • 12" shallow-mount subwoofer with dual 4-ohm voice coils
  • polypropylene cone with aluminum dust cap and butyl rubber surround
  • cast aluminum frame
  • frequency response: 25-100 Hz
  • power handling: 600 watts RMS (300 watts per coil)
  • peak power: 1800 watts
  • sensitivity: 81 dB
  • top-mount depth: 3.301"
  • sealed box volume: 0.65-1.55 cu. ft.
  • grille not included
  • warranty: 1 year
  • MFR # RS-W12D4

What's in the box:

Alpine RS-W12D4 owner's manual


  • One 12" Dual 4-ohm voice coil shallow mount subwoofer
  • Plastic trim ring
  • Two 18" jumper wires (12-gauge)
  • 2.5mm Hex key
  • Application guide (English/ French)
  • On-line product registration information
  • Warranty information (English/ French)
  • Important Notice (English/ French)
