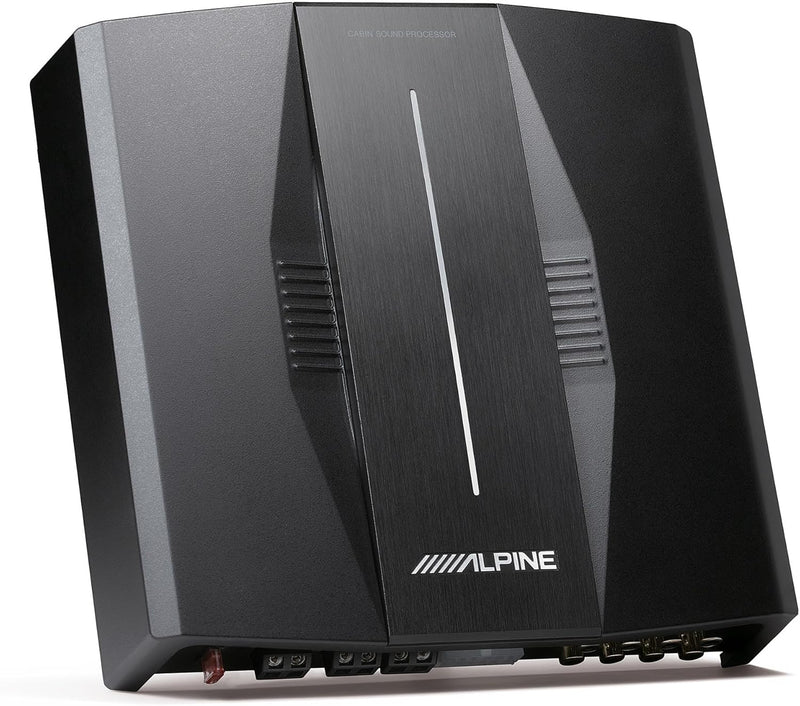

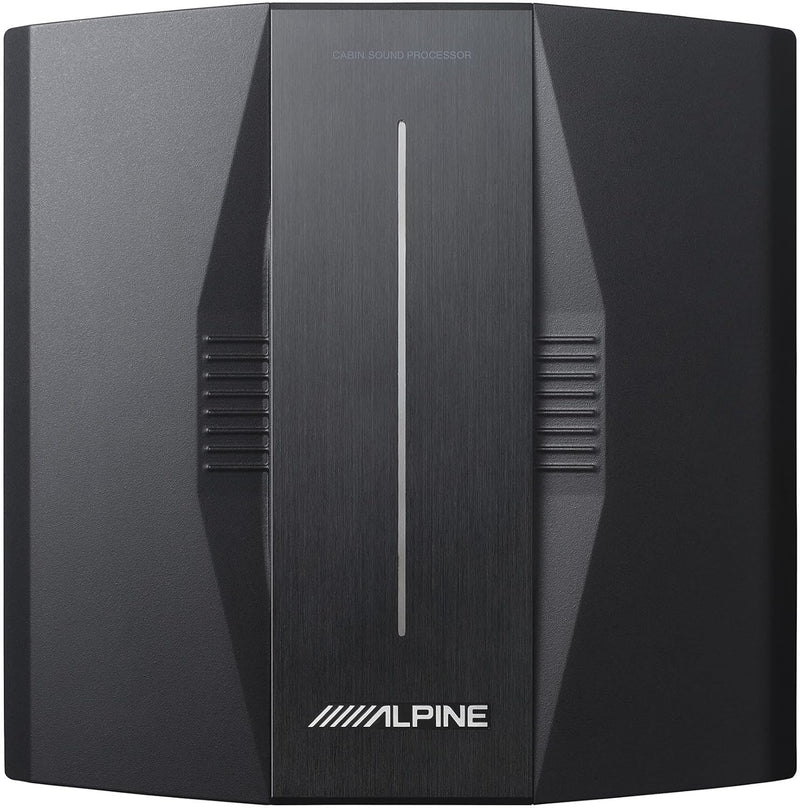

PXE-C80-88 Alpine OPTIM8 8-Channel Hi-Res Digital Sound Processor w/ Built-In Amplifier 50W x 6 @2 Ohm + 300W x 2 @2 Ohm

PXE-C80-88 Alpine OPTIM8 8-Channel Hi-Res Digital Sound Processor w/ Built-In Amplifier 50W x 6 @2 Ohm + 300W x 2 @2 Ohm

by Alpine
Save 20% Save 20%
$1,000.00
$1,000.00 - $1,000.00
$1,000.00
$799.95
$799.95 - $799.95
$799.95
🚚 Order within the next 2 hours, 15 minutes for delivery by 25 Feb, 2025.
Availability:
Almost Gone

PXE-C80-88

OPTIM8® 8-Channel Sound Processor and Amplifier with Automatic Sound Tuning via Smartphone or PC (AutoEQ 2.0)

The ultimate all-in-one DSP and Amplifier, designed to effortlessly measure, tune, and optimize any sound system from the palm of your hand.

ALL-IN-ONE AUDIO SOLUTION

The Alpine OPTIM8® combines an advanced digital sound processor and a powerful system amplifier into one sleek, all-in-one solution. With full control from your smartphone using the intuitive Alpine OPTIM app, you can effortlessly fine-tune your system in minutes through a simple, self-guided process. Whether upgrading a factory sound system or building a custom setup, the OPTIM8® delivers professional-grade audio performance with unmatched convenience and precision.


SIMPLIFIED SOUND TUNING WITH AUTOEQ 2.0

The Alpine OPTIM8® transforms complex audio tuning into a simple, step-by-step process—fully controlled from your smartphone. No PC required. Available on both Apple iOS and Android devices, the intuitive Alpine OPTIM app with AutoEQ 2.0 scans your vehicle's interior environment—accounting for speaker placement, seating position, and reflections—and then intelligently adjusts frequency response, timing alignment, and audio output. The result is a perfectly balanced, immersive soundstage, custom-tuned to your unique vehicle cabin.

POWERFUL AMPLIFICATION, SEAMLESS INTEGRATION

The Alpine OPTIM8® combines 8 channels of dynamic power with precision audio control, delivering clarity and performance across every channel. Whether you're enhancing a factory sound system or building a custom setup, the OPTIM8® provides clean, powerful amplification that brings your music to life. Pair it with Alpine's S-Series speakers and subwoofers for an upgraded audio experience that delivers deep bass, crisp highs, and rich mids in perfect harmony.


INSTANT PRECISION WITH CENTER IMAGE MODE

With the innovative AutoEQ 2.0 software, the Alpine OPTIM8® app delivers Center Image Mode, giving you a perfectly balanced soundstage at the click of a button. This feature automatically adjusts time alignment and frequency response, positioning vocals and instruments right in front of you for a front-row listening experience. Whether you're driving solo or with passengers, every note remains crisp, clear, and perfectly centered, making every drive feel like a live performance.

PRESETS FOR EVERY PLAYLIST

The Alpine OPTIM8®, enhanced with the AutoEQ 2.0 software, introduces four distinct Target Curve Presets-Preset 1, Preset 2, Preset 3, and Default. These presets let you quickly switch between sound profiles tailored for different music styles and listening preferences. Whether you're craving deep bass, smooth acoustics, or balanced clarity, the OPTIM8® adapts instantly to match your mood. With the included OPTIM8® Controller (RUX-CSP1), switching presets is effortless, letting you fine-tune your audio experience with a simple turn of a dial.


Product highlights:

  • 8-channel car amplifier with digital signal processing
    • 50 watts RMS x 6 + 150 watts RMS x 2 at 4 ohms
    • 50 watts RMS x 6 + 300 watts RMS x 2 at 2 ohms
  • High-Resolution Class D amp technology
    • frequency response: 10-48,000 Hz
    • digital signal processing: 96 kHz, 24-bit
  • initial setup made via Alpine's DSP control app on your PC device
    • automatic tuning via iPhone uses built-in mic and Bluetooth® connection to amp (dongle included)
    • automatic and manual tuning via PC uses an external measurement microphone like Alpine's KTX-CSP1 and USB connection to amp (cable included)
  • signal processing includes input/output routing, 31-band EQs, and multi-channel time alignment
  • Anti-EQ eliminates factory EQ curves
More info:

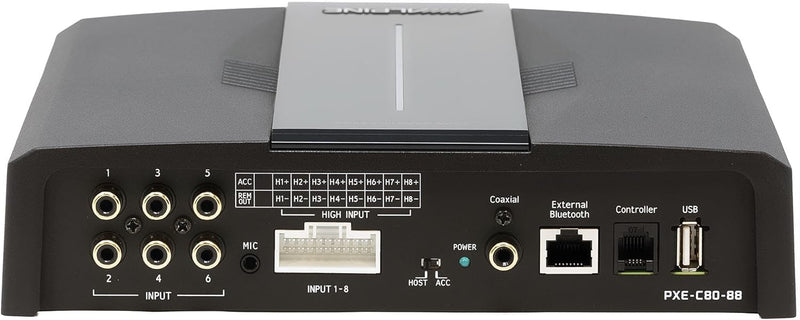

  • inputs: coax and USB digital (up to 96 kHz, 32-bit); 8-channel high-level speaker (up to 30V); 6-channel RCA
    • amp's remote turn-on circuit ("Switched Power Lead") uses the included high-level input harness

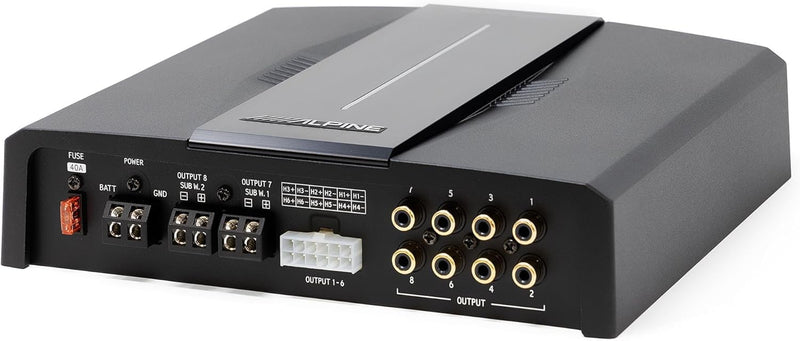

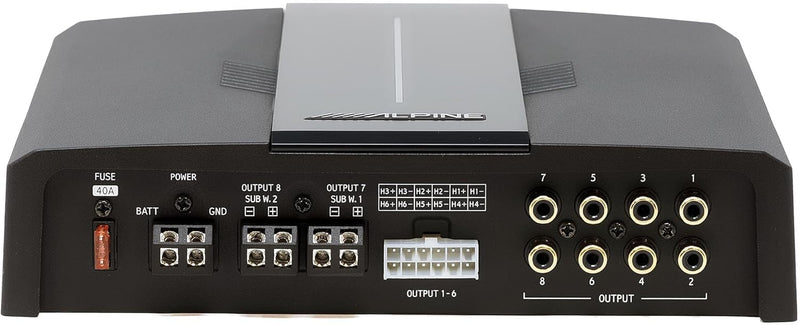

  • preamp outputs: 8-channel processed (4V)
  • wiring and hardware not included with amplifier
    • 10-gauge power and ground wires recommended
  • fuse rating: 40A
  • dimensions: 8.82"W x 2.14"H x 10.43"D
  • warranty: 1 year
  • MFR # PXE-C80-88

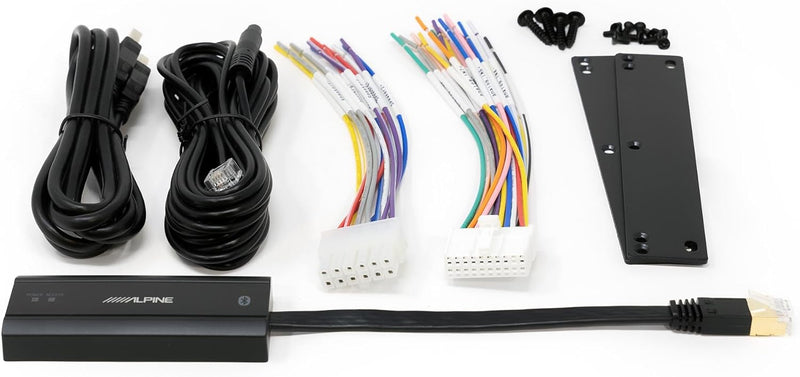

What's in the box:

Alpine PXE-C80-88 owner's manual


  • 8-Channel processor/amplifier (installed 40A mini-ATO fuse)

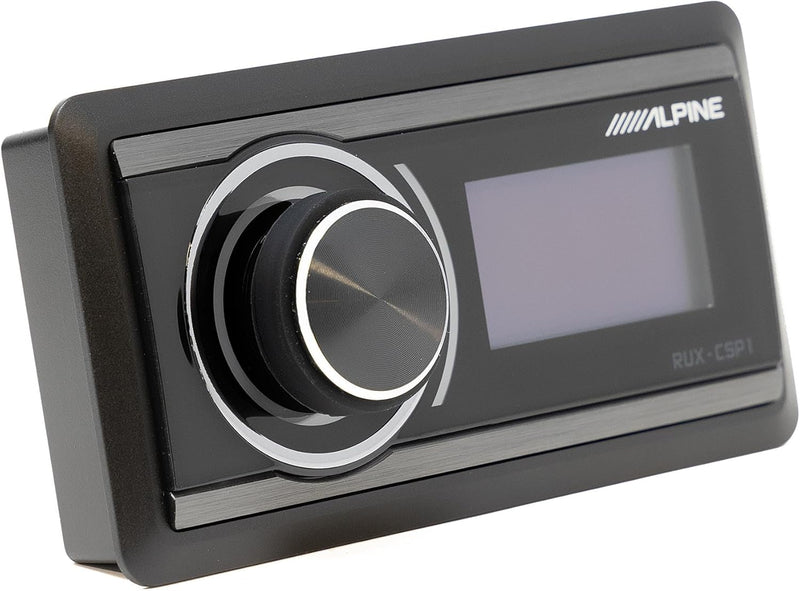

  • CSP Controller (attached 16" cable with 4-pin connector)
  • 16.25' Controller cable (4-pin connector on one end / RJ-12 connector on other end)

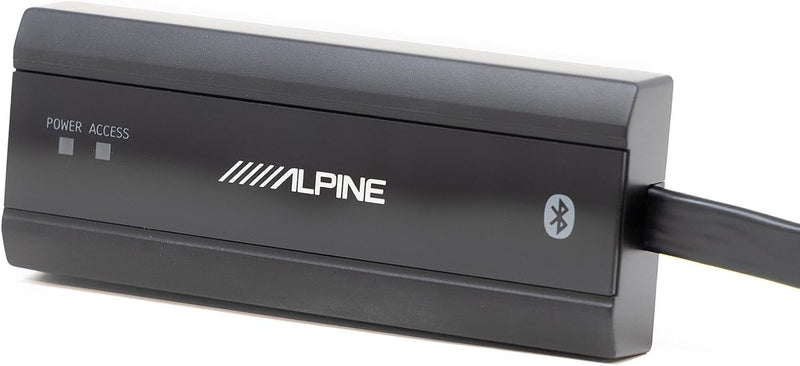

  • KCE-800BT Bluetooth module (attached 6" cable terminated in an RJ-45 connector)
  • 5' USB-A cable (2.0)
  • 6" 20-Pin input harness
  • 6" 12-Pin output harness
  • 2 Mounting plates
  • Four 3/4" pan-head screws
  • Ten 6mm counter-sunk machine screws
  • Quickstart guide (En/ Sp/ Fr/ Others)
  • Warranty information
  • Product registration information
  • Quickstart addendum
