FLEXIBLE PLAYBACK

The HDS-990 has multiple digital source inputs that can play a wide range of digital music file formats from MP3 to Hi-Res for flexible playback options. Either connect a smartphone or mass storage device via a wired USB connection or USB input or connect wirelessly via Bluetooth® and LDAC connection. Hi-Res music can be accessed on popular Hi-Res streaming services like Apple Music, Tidal, Amazon Music HD, and more or purchased and downloaded from platforms like HD tracks.

ICONIC DESIGN

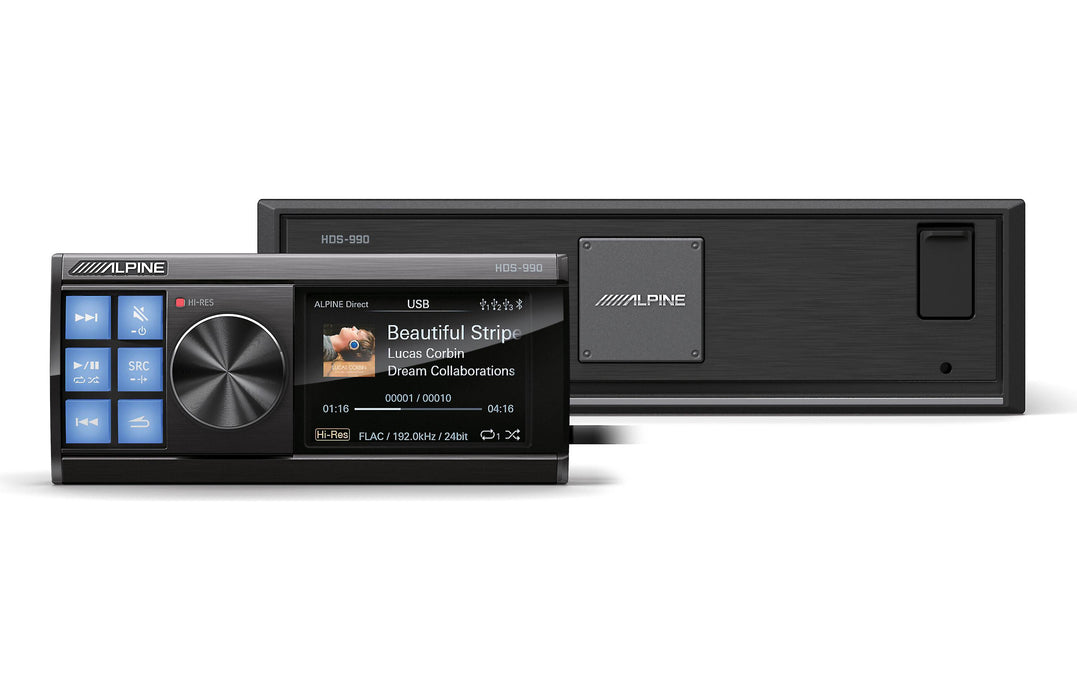

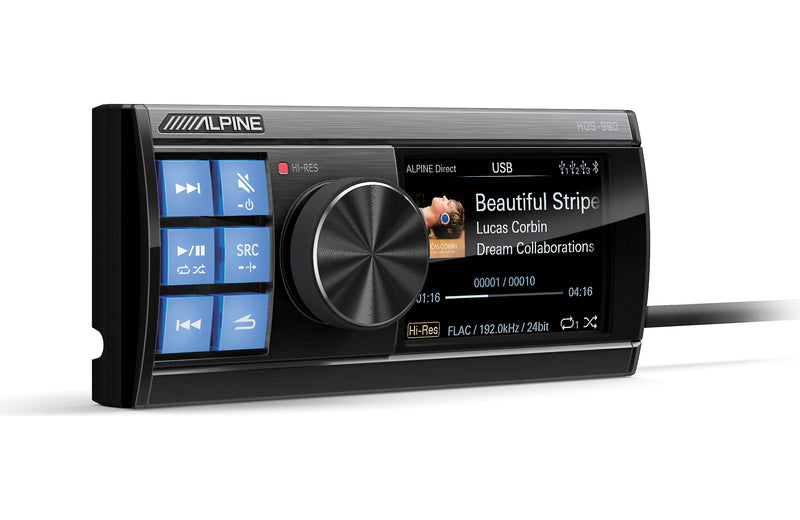

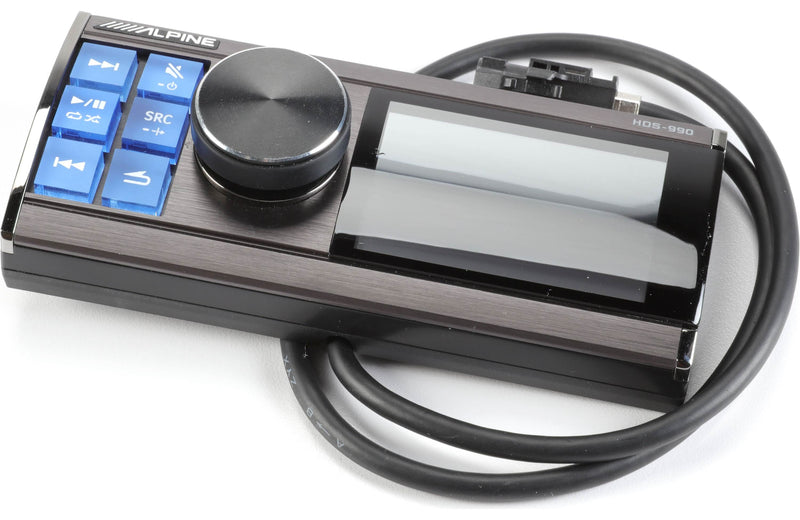

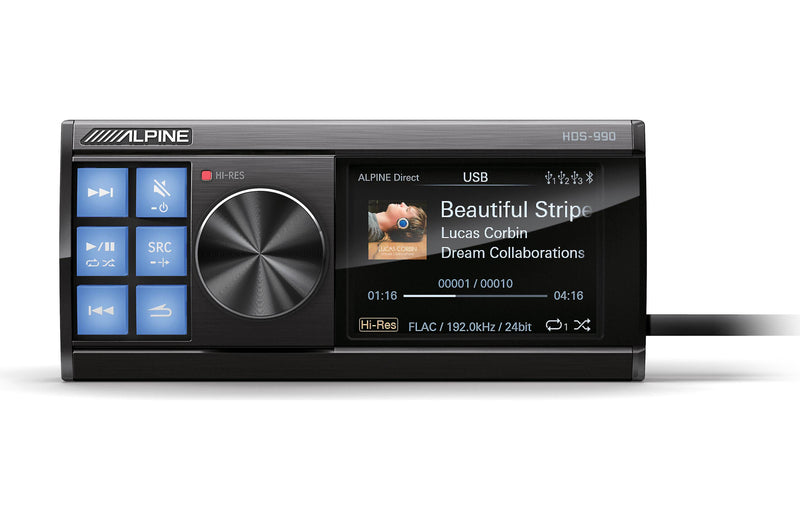

The HDS-990 features a commander unit with six chiclets that access various sound and music controls and a high-definition display that features song information. The unit can be conveniently mounted to the dash and used as a standalone music source or integrated with the factory or aftermarket head unit via the RCA or 4-Chanel High-Level Inputs to easily switch between digital music sources.

INFALLIBLE LISTENING EXPERIENCE

When paired with the Hi-Res processing power of the HDP-D90 Digital Sound Processor Amplifier (DSP), you receive an infallible listening experience and the ability to build and tune your ideal sound system.

FLEXIBLE INSTALLATION

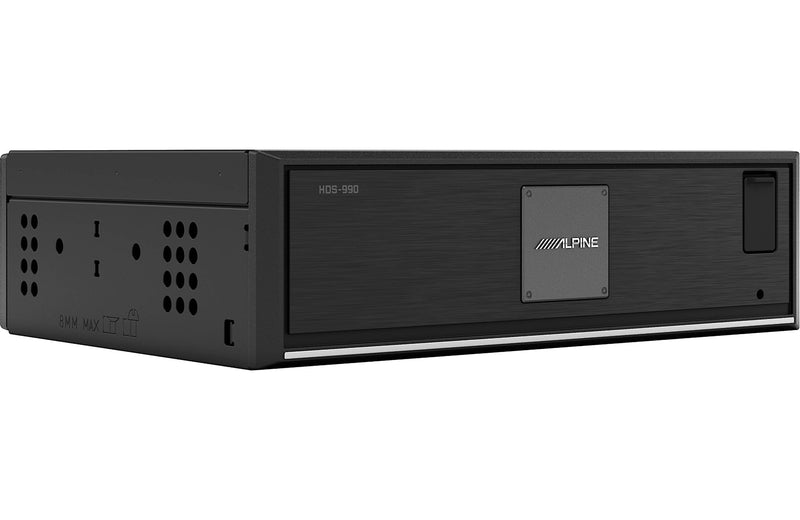

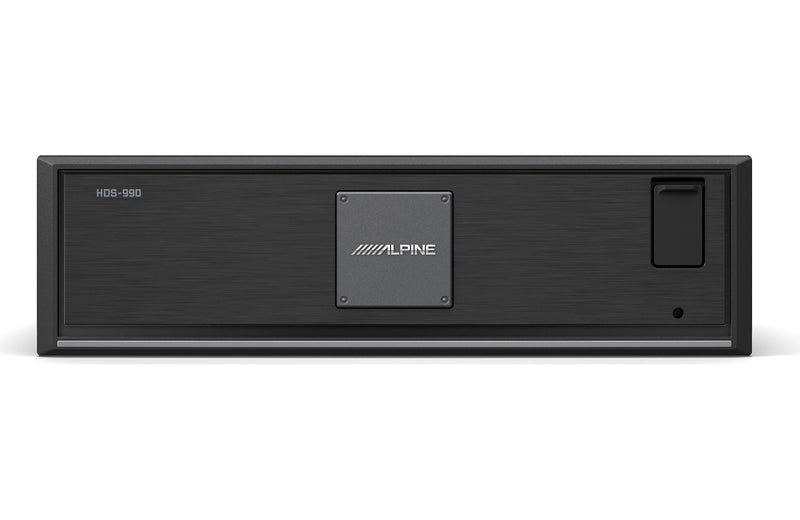

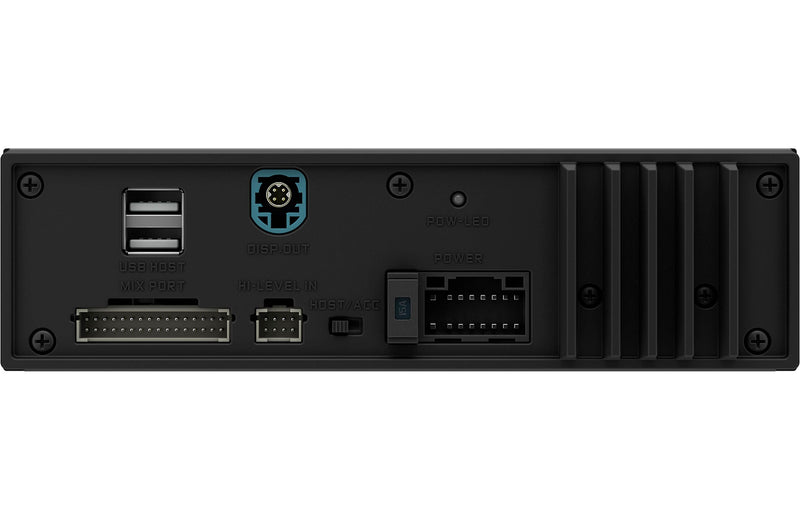

The HDS-990 includes a separate black box that can be installed behind the console, under the seat, or in another hidden area for flexible installation options. The black box features a wide range of feature suites for inputs and outputs that allow for convenient integration into any type of factory or aftermarket sound system.

OPTIMIZED FOR FULL SYSTEM

The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1 System.

Product highlights:

General Features:

• high-resolution digital media player (does not play discs)
• no AM/FM radio tuner

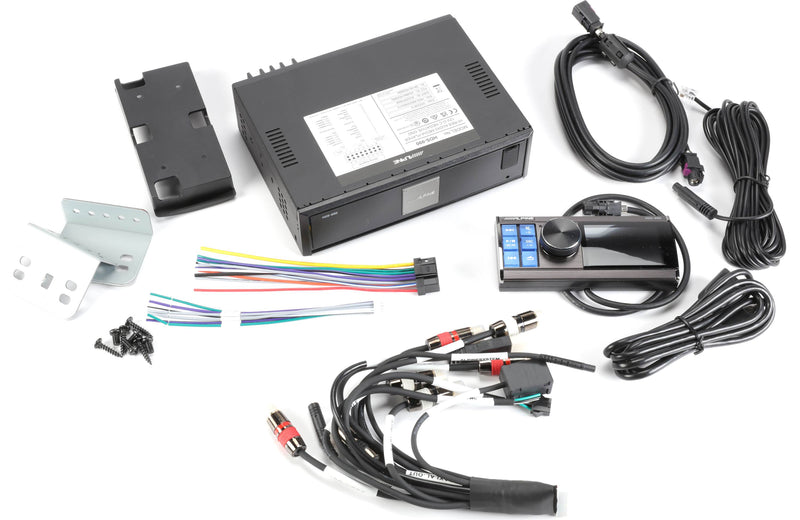

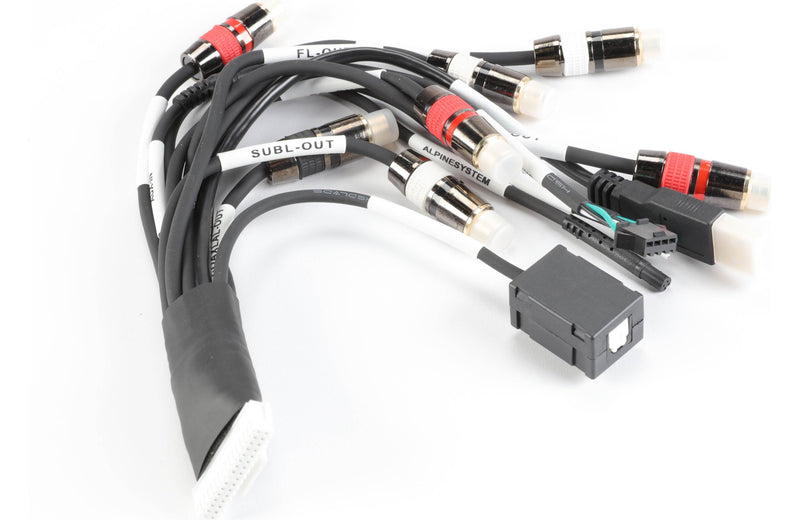

• black box source unit and dash-mountable commander unit with wiring harnesses for connection between the two and to factory radios (if desired)
• built in amplifier: 25W x 4 RMS (50W x 4 max)
• source unit not designed to work in most dash openings

Smartphone Features:

• built-in Bluetooth for audio streaming (does not allow for hands-free calling)
• compatible with AAC, aptX/aptX HD, LDAC, and SRC formats for streaming audio

Audio Features:

• audiophile-grade components, materials, and construction
• plays AAC, AIFF, ALAC, APE, DSD, FLAC, LDAC, MP3, M4A, WMA, and WAV files up to 24-bit/192kHz resolution with wired connection
• high-resolution indicator light on commander unit

Expandability:

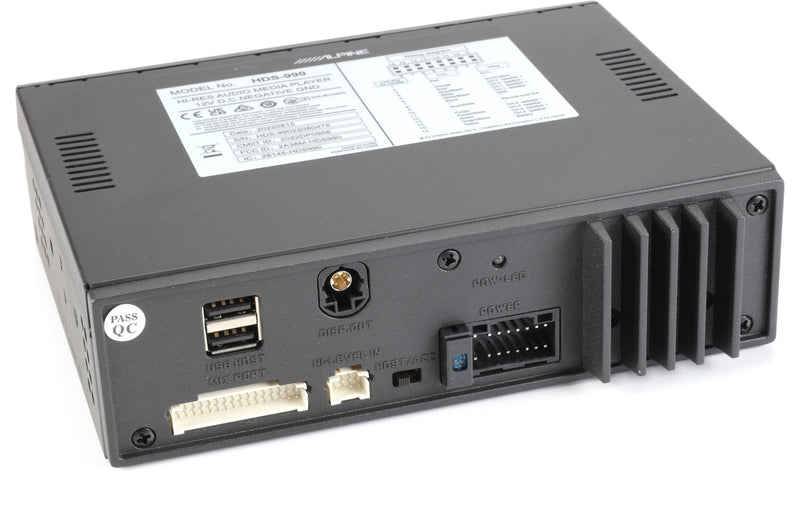

• inputs: 3 USB ports (1 front, 2 rear); rear 3.5mm auxiliary input ; 4-channel high-level analog input
• outputs: digital coaxial output; digital optical output; 4-channel high-level analog output; 6-channel preamp outputs (4-volt front, rear, sub)

Other Info:

• source unit dimensions: 7"D x 5-11/16"W x 2"H
  commander unit dimensions: 4-13/16"W x 2-1/8"H
• MFR # HDS-990

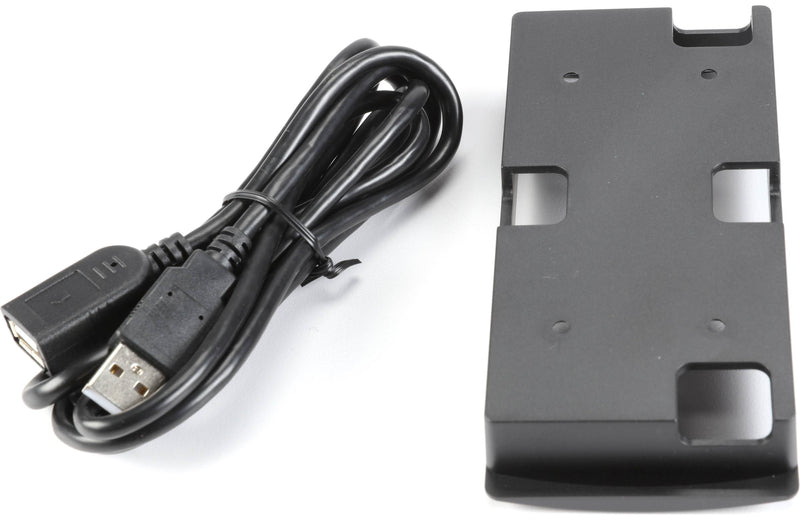

What's in the box:
