HDA-M80 Alpine Status Hi-Res Mono Subwoofer Amplifier 800W RMS at 2-Ohm, Hi-Res Certified

HDA-M80 Alpine Status Hi-Res Mono Subwoofer Amplifier 800W RMS at 2-Ohm, Hi-Res Certified

by Alpine
🚚 Order within the next 2 hours, 15 minutes for delivery by 21 Nov, 2024.
Save 6% Save 6%
$800.00
$800.00 - $800.00
$800.00
$749.95
$749.95 - $749.95
$749.95
Availability:
Almost Gone
Request a quote

HDA-M80

Alpine Status 800W Mono Subwoofer Amplifier

With the highest quality music streaming available on the market, Alpine Status delivers a superior level of audio performance that will take your music to a whole new level.

SUPERIOR SOUND

Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status System features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24Bit playback.

IMPRESSIVE OUTPUT

Powering a Hi-Res sound system without contributing noise during playback requires efficiency and precision and the HDA-M80 was intentionally designed to provide impressive power output to the system while ensuring the purest audio performance. The amplifier’s wide dynamic range capability provides impressive output in a compact chassis that fits most vehicle applications.

PRECISE SOUND REPRODUCTION

The HDA-M80 features a high-efficiency digital circuit design that ensures ultra-low distortion levels for precise sound reproduction and superb sound quality. Intentional designs, like a copper-plated chassis and black circuit board, bring the signal-to-noise ratio up to 83dB and minimize noise and distortion during playback for complete music fidelity that's true to the original source.

INCREDIBLE RELIABILITY

Featuring technology unique to Alpine, the amplifier features Alpine's dual negative feedback control circuit to improve linearity for the most accurate sound amplification. This technology also stabilizes the amplifier output while driving the subwoofers for ultimate reliability.

EASY INSTALLATION

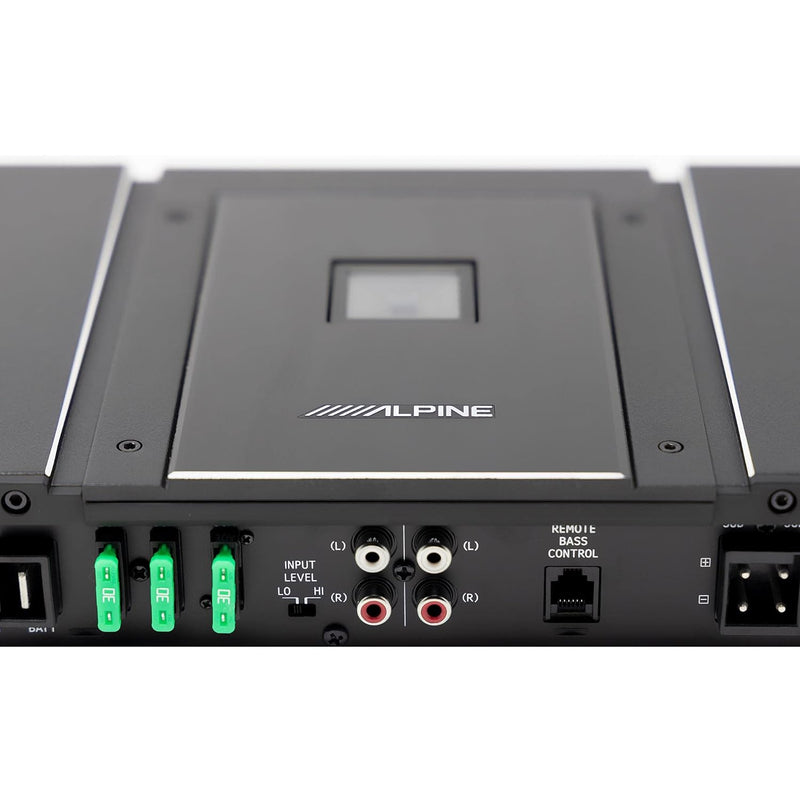

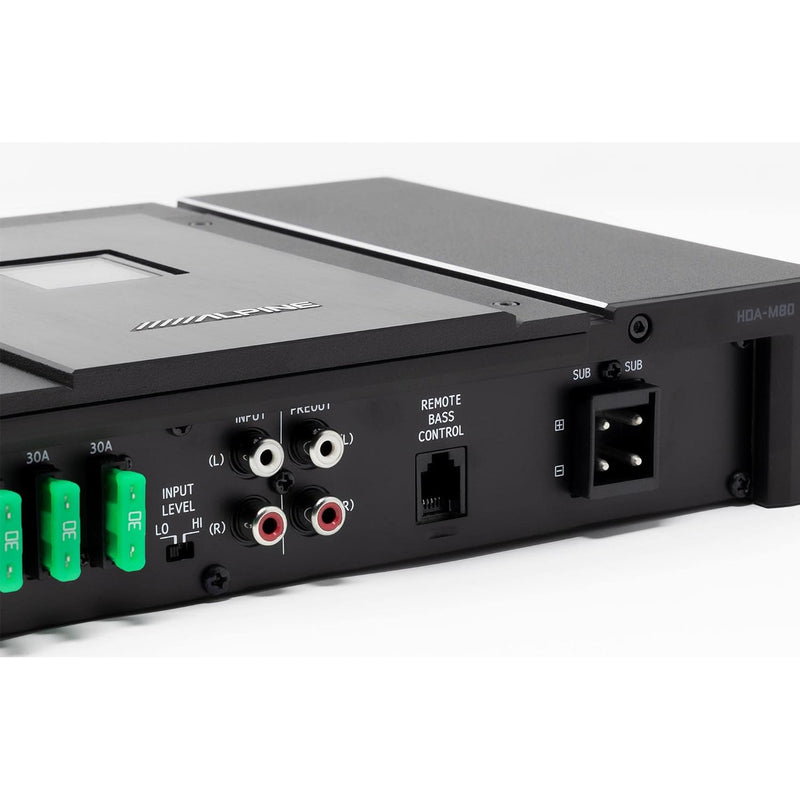

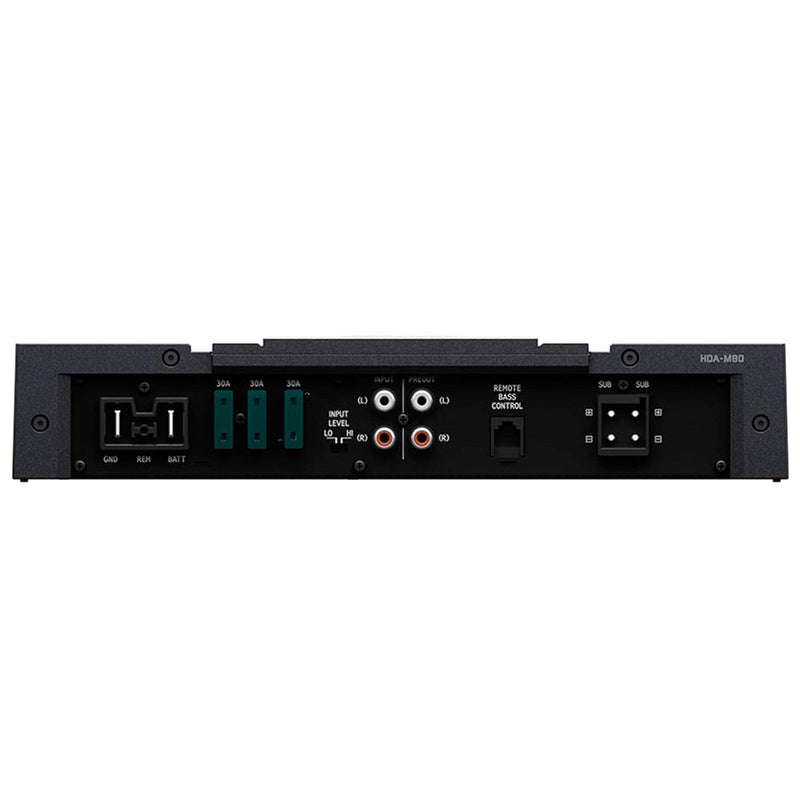

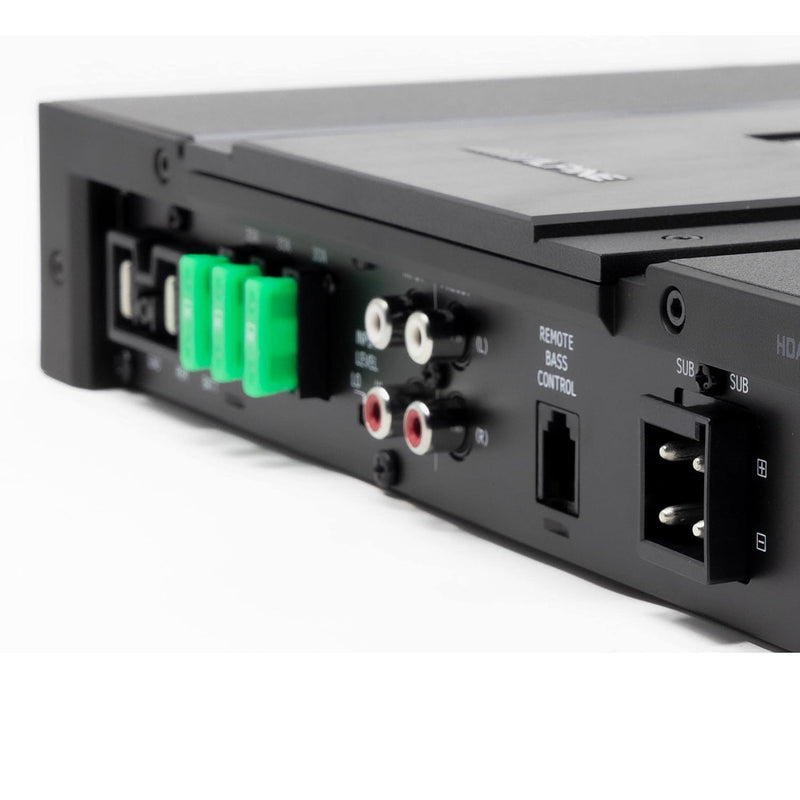

The HDA-M80 features Alpine's quick-connect power and speaker connectors for quick and safe installation. The one-sided terminal layout and top-panel sound controls give the user quick access to controls on the amplifier.

Product highlights:

  • mono subwoofer amplifier
    • 500 watts RMS x 1 at 4 ohms
    • 800 watts RMS x 1 at 2 ohms
  • Class-D amplifier technology
    • frequency response: (-3 dB) 8 to 400 Hz
  • variable low-pass filter (50-400 Hz, 24 dB/octave)
  • variable subsonic filter (8-40 Hz, 24 dB/octave)
  • variable bass boost (0-12 dB, 50 Hz)
More info:
  • preamp and speaker-level (up to 10V) inputs
    • speaker-level inputs require speaker wire to RCA adapters
    • speaker-level inputs feature signal-sensing amplifier turn-on
  • optional RUX-KNOB.2 wired remote level control available
  • quick-connect speaker and power connectors
  • wiring and hardware not included with amplifier
    • 4-gauge power and ground wire recommended
  • fuse rating: 30A x 3
  • 11.4375"W x 2.125"H x 7.5"D
  • MFR # HDA-M80



What's in the box:

Alpine HDA-M80 owner's manual

  • Mono subwoofer amplifier
  • Three 30-amp ATO fuses (installed)
  • Top cover (installed)
  • Power connector plug
  • Speaker connector plug
  • 2 Mounting legs
  • 2mm Allen wrench
  • 2.5mm Allen wrench
  • 4mm Allen wrench
  • Four 3/4" Screws
  • Eight 3/8" Screws
  • Owner's manual (English/ German/ French/ Spanish/ Italian/ Swedish/ Russian/ Chinese)
  • Alpine verification certificate
  • Warranty information
  • Product registration information
  • Power wiring note
